GtkAboutDialog ---GTK+ Dialogs

The GtkAboutDialog displays information about the application. GtkAboutDialog can display a logo, the name of the application, version, copyright, website or licence information. It is also possible to give credits to the authors, documenters, translators and artists

#include
void show_about(GtkWidget *widget, gpointer data)
{
GdkPixbuf *pixbuf = gdk_pixbuf_new_from_file("battery.png", NULL);
GtkWidget *dialog = gtk_about_dialog_new();
gtk_about_dialog_set_name(GTK_ABOUT_DIALOG(dialog), "Battery");
gtk_about_dialog_set_version(GTK_ABOUT_DIALOG(dialog), "0.9");
gtk_about_dialog_set_copyright(GTK_ABOUT_DIALOG(dialog),
"(c) Jan Bodnar");
gtk_about_dialog_set_comments(GTK_ABOUT_DIALOG(dialog),
"Battery is a simple tool for battery checking.");
gtk_about_dialog_set_website(GTK_ABOUT_DIALOG(dialog),
"http://www.batteryhq.net");
gtk_about_dialog_set_logo(GTK_ABOUT_DIALOG(dialog), pixbuf);
g_object_unref(pixbuf), pixbuf = NULL;
gtk_dialog_run(GTK_DIALOG (dialog));
gtk_widget_destroy(dialog);
}
int main( int argc, char *argv[])
{
GtkWidget *window;
GtkWidget *about;
GdkPixbuf *battery;
gtk_init(&argc, &argv);
window = gtk_window_new(GTK_WINDOW_TOPLEVEL);
gtk_window_set_position(GTK_WINDOW(window), GTK_WIN_POS_CENTER);
gtk_window_set_default_size(GTK_WINDOW(window), 220, 150);
gtk_window_set_title(GTK_WINDOW(window), "Battery");
gtk_container_set_border_width(GTK_CONTAINER(window), 15);
gtk_widget_add_events(window, GDK_BUTTON_PRESS_MASK);
battery = gtk_image_get_pixbuf(GTK_IMAGE(
gtk_image_new_from_file("battery.png")));
g_signal_connect(G_OBJECT(window), "button-press-event",
G_CALLBACK(show_about), (gpointer) window);
g_signal_connect_swapped(G_OBJECT(window), "destroy",
G_CALLBACK(gtk_main_quit), G_OBJECT(window));
gtk_widget_show_all(window);
gtk_main();
return 0;
}

The code example uses a GtkAboutDialog with some of it's features. To pop up the about dialog, we click on the client area of the window.

GtkWidget *dialog = gtk_about_dialog_new();

We create a new GtkAboutDialog.

gtk_about_dialog_set_name(GTK_ABOUT_DIALOG(dialog), "Battery");
gtk_about_dialog_set_version(GTK_ABOUT_DIALOG(dialog), "0.9");
gtk_about_dialog_set_copyright(GTK_ABOUT_DIALOG(dialog),
"(c) Jan Bodnar");

These function calls set a name, version and the copyright.

GdkPixbuf *pixbuf = gdk_pixbuf_new_from_file("battery.png", NULL);
...
gtk_about_dialog_set_logo(GTK_ABOUT_DIALOG(dialog), pixbuf);
g_object_unref(pixbuf), pixbuf = NULL;

This code creates a logo.

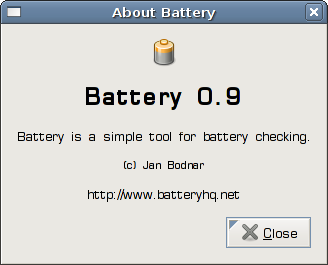

Figure: GtkAboutDialog
